Introduction
This post is part of the CNC Mill Concept hub. It covers quasi-static compliance estimation, ECU-based machine state classification, the supervision logic that acts on those states, and the state transition hysteresis model.
Compliance Estimation and Structural Observability
Purpose
Estimate quasi-static structural behavior under load
Detect excessive compliance that risks tolerance loss
Provide slow-varying state information for process supervision
Not intended for real-time control loops
Tilt Estimation
Derived from accelerometer data
Uses gravity vector for orientation reference
Strong low-pass filtering applied
Valid only in quasi-static conditions
Used to estimate spindle plate rotation under load
Strain Gauge Measurement
Strain gauge mounted on X carriage
Measures bending of X gantry under load
Acts as cutting-force proxy
Provides information independent of vibration measurements
Motor Current as Load Proxy
Motor current monitored at spindle drive
Two components used:
fast component:
incipient stall detection
slow envelope:
mean cutting load estimation
Compliance Model
Structural compliance model maintained in ECU
Model inputs:
spindle plate tilt
X-carriage strain
motor current
Model output:
estimated tool/spindle deflection envelope
Model characteristics:
calibrated using known static or quasi-static loads
evaluated only in steady-state conditions
versioned and recalibratable
Model is:
a slow observer
not part of safety system
Machine State Estimation and Process Supervision
Purpose
Combine sensor data into a coherent machine state
Supervise the machining process based on estimated state
Prevent tolerance loss, chatter, and spindle stall
Never perform motion planning or trajectory generation
Machine State Estimation
State estimation performed in ECU
Inputs:
vibration:
piezo surface microphones
accelerometers
quasi-static tilt:
low-pass-filtered accelerometer data
structural load:
X-carriage strain gauge
spindle load:
motor current
Sensor fusion performed with explicit time-scale separation:
fast signals:
vibration
chatter indicators
slow signals:
tilt
strain
motor current envelope
Machine State Classification
ECU classifies the current operating state as:
normal operation
static overload / excessive compliance
dynamic instability (chatter)
incipient spindle stall
Process Supervision Actions
ECU supervises process only
ECU does not:
control axis motion
modify trajectories
override safety systems
Actions requested via:
Duet macros
GPIO signals for low latency
Supervision Logic
Static overload / excessive compliance:
detected by increased tilt and/or strain
action: reduce feed rate
Dynamic instability (chatter):
detected by elevated vibration energy
action: adaptive spindle speed adjustment
Incipient stall:
detected by rapid motor current increase
action: immediate feed reduction
State Transitions and Hysteresis
State transitions implemented using Schmitt-trigger logic
Upper threshold:
spindle motor current ≥ 100 % rated
transition to reduced-feed state
Lower threshold:
spindle motor current ≤ configurable value (e.g. 80 %)
maintained for configurable time
transition back to normal-feed state
Hysteresis prevents oscillation and hunting
Configuration and Scope
All thresholds and timing parameters:
configurable via Raspberry Pi plugin
logged for analysis
Supervisory logic:
non-safety-critical
fully disable-able
degrades gracefully if unavailable
Safety functions remain hardware-only and independent
Architecture Diagram

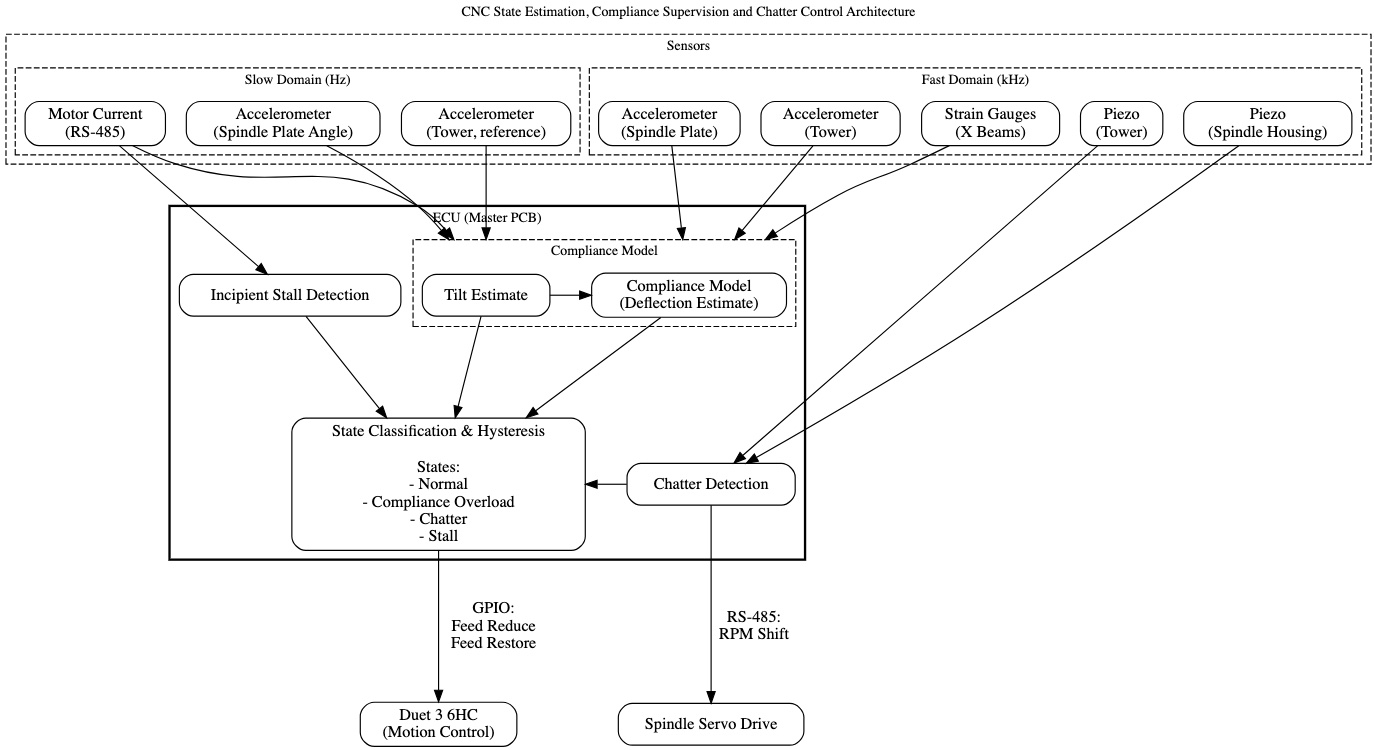

Fig. 1 shows the full state estimation and supervision architecture with sensor inputs, ECU processing layers, and output connections to the Duet and spindle drive.
Figure 1: CNC state estimation, compliance supervision, and chatter control architecture: sensor inputs by time domain, ECU compliance model and chatter detection, state classification with hysteresis, and GPIO/RS-485 outputs to Duet and spindle drive.
